Binocular Lens Coatings Guide
“Fully multi-coated,” “phase-corrected,” “dielectric” — the spec sheets are full of coating jargon. Here’s what every word actually means, and why coatings are the secret behind a bright, crisp view.
Quick answer: Binocular lens coatings are micro-thin layers on the glass that cut reflections so more light reaches your eye. The four levels, from worst to best, are coated → fully coated → multi-coated → fully multi-coated. Roof-prism models add phase-correction and dielectric prism coatings for extra sharpness and brightness. More and better coatings mean a brighter, clearer, more color-true image.
⚠️ Disclosure: This guide is educational. It contains one affiliate link to a binocular that’s a great example of premium coatings (#ad, tag applied). As an Amazon Associate we may earn from qualifying purchases at no extra cost to you. We only suggest gear we’d use ourselves.
Ever wonder why two binoculars with the same “8×42” on the side can look completely different through the eyepiece? One is bright and crisp; the other looks dull, washed out, and a little hazy. Most of the time, the difference isn’t the size of the lenses — it’s the coatings on them.
Coatings are the most misunderstood part of binocular specs. The labels sound like marketing word salad, and stores rarely explain them. But once you understand coatings, you can read any spec sheet like a pro, spot good value, and avoid overpaying for letters that don’t matter. In this guide, we’ll break down every coating type in plain English, show you how each one changes what you see, and teach you how to judge coating quality with your own eyes. Let’s clear things up — literally.
✨ Premium-coatings example · ED glass + dielectric
Nikon Monarch M7 10×42
4.7/5 · fully multi-coated, dielectric & phase-corrected, ED glass
If you want to see what top-tier coatings look like on a real spec sheet, the Nikon Monarch M7 10×42 is a textbook example. It stacks fully multi-coated lenses, dielectric high-reflective prism coatings, and phase-correction coatings on top of bright ED (extra-low dispersion) glass — the exact combination this guide explains. Add a wide field of view, generous eye relief, a locking diopter, and a nitrogen-filled waterproof, fogproof body, and you’ve got a binocular whose view is noticeably brighter and crisper than budget optics. It’s a great real-world demonstration of why coatings matter.
Pros
- Full premium coating stack (FMC + dielectric + phase)
- ED glass cuts color fringing
- Wide field of view, locking diopter
- Waterproof, fogproof, nitrogen-filled
Cons
- Pricier than entry-level optics
- 10x shows a little more hand-shake than 8x
📋 What you’ll learn
Why Lens Coatings Exist
To understand coatings, you have to understand a simple problem: glass reflects light.
Every glass surface loses light
Whenever light passes from air into glass (or back out), a small slice of it bounces off the surface instead of going through. On a single uncoated surface, that’s roughly 4 to 5 percent of the light lost. That doesn’t sound like much — until you realize a pair of binoculars has many glass surfaces.
The losses add up fast
A typical binocular has 10 to 16 air-to-glass surfaces (objective lenses, prisms, eyepieces). If each one reflects away 4 to 5 percent, an uncoated binocular might deliver only 50 to 60 percent of the light to your eye. That’s a dim, dull image. Worse, all those stray reflections bounce around inside and wash out contrast, creating a hazy, low-definition view.
Coatings are the fix
A lens coating is an ultra-thin layer — thinner than a wavelength of light — applied to the glass. It cancels out much of the reflection, so more light continues straight through. Good coatings can push light transmission from ~50 percent all the way up to 90 to 95 percent. That’s the difference between a dim, flat image and a bright, punchy one.
Coatings don’t add light. They stop your binoculars from wasting the light that’s already there — and that makes all the difference at dawn, dusk, and in deep shade.
🎯 Key Takeaway
Bare glass reflects away 4–5% of light per surface. With a dozen-plus surfaces, an uncoated binocular can lose nearly half its light. Coatings recover that loss, which is why they matter more than almost any other spec for brightness and contrast.
The 4 Coating Levels (Decode the Labels)
This is the part that confuses everyone. There are four official terms, and they sound almost identical — but they mean very different things. The two key words are “fully” (all surfaces vs some) and “multi” (many layers vs one).
| Label | What it means | Typical light transmission |
|---|---|---|
| Coated | At least one surface has a single layer | ~60–70% |
| Fully Coated | All air-to-glass surfaces have a single layer | ~80% |
| Multi-Coated | At least one surface has multiple layers | ~85% |
| Fully Multi-Coated (FMC) | All air-to-glass surfaces have multiple layers | ~90–95% |
The one to look for: Fully Multi-Coated
“Fully multi-coated” (often shortened to FMC) is the gold standard for the lens elements. It means no surface was skipped, and each got several anti-reflection layers. If a spec sheet just says “multi-coated” or “coated,” the maker likely cut corners on some surfaces to save money.
Watch the weasel words
Budget binoculars love to print “multi-coated optics” in big letters because it sounds premium — but it might mean only the front lens got the good treatment while the rest are barely coated. Always look for the full phrase “fully multi-coated.” One missing word can mean a real drop in brightness.
⚠️ Warning
“Multi-coated” and “fully multi-coated” are not the same thing. The word “fully” is the one that guarantees every surface is treated. Marketers know most buyers skim, so read the exact wording before you decide.
Anti-Reflection Coatings (the Workhorse)
When people say “coatings,” they usually mean anti-reflection (AR) coatings — the layers that fight that 4–5 percent per-surface loss.
How they work
An AR coating is tuned so that light reflecting off the top of the coating and light reflecting off the glass underneath cancel each other out. Less reflection means more light passes through. It’s the same science behind anti-glare coatings on eyeglasses and camera lenses.
Single-layer vs multi-layer
A single layer (often magnesium fluoride) knocks per-surface reflection from ~4.5 percent down to ~1.5 percent. But a single layer only works well for one color of light. Multiple layers — each tuned to a different wavelength — cut reflection across the whole visible spectrum, dropping it to a fraction of a percent per surface. That’s why “multi” matters so much.
🔬 Did You Know?
The faint colored sheen you see on quality coated lenses — usually green, purple, or amber — is the coating at work. Those colors are the tiny slivers of light the coating couldn’t cancel, reflecting back. Bright, mirror-like white or blue reflections often signal cheaper or missing coatings.
Phase-Correction Coatings (Roof Prisms Only)
This one applies only to roof-prism binoculars — the slim, straight-barrel style. If you’re unsure which type you have, our guide on roof prism vs porro prism explains the difference.
The problem phase correction solves
Inside a roof prism, light splits and travels two slightly different paths, then recombines. Without help, the two halves come back slightly out of sync (out of phase). That subtle mismatch softens fine detail and lowers contrast.
The fix
A phase-correction coating on the prism keeps the light waves in step, so the image stays crisp. The difference is real and visible: a phase-corrected roof prism resolves finer detail than one without. Quality roof binoculars almost always include it; very cheap ones skip it.
📝 Good to Know
Porro-prism binoculars (the wide, zigzag-shaped classic style) don’t need phase correction because of how their prisms bend light. So if you see a porro binocular without “phase-corrected” listed, that’s normal — not a downgrade.
Prism Mirror Coatings (Aluminum, Silver, Dielectric)
Roof prisms also need a reflective (mirror) coating on one surface to bounce light at the right angle. The quality of that mirror coating has a big impact on brightness.
| Prism mirror coating | Light reflected | Found on |
|---|---|---|
| Aluminum | ~87–93% | Budget roof binoculars |
| Silver | ~95–98% | Mid-range roof binoculars |
| Dielectric | ~99%+ | Premium roof binoculars |
Why dielectric wins
A dielectric coating is built from dozens of micro-thin layers that together reflect more than 99 percent of light — better than any metal mirror. It also reflects all colors evenly, so the image stays color-true instead of picking up a faint warm or cool tint. On the spec sheet, look for “dielectric” or “dielectric high-reflective prism coating” (exactly what the Nikon in the box above uses).
Porro prisms skip this too
Porro prisms reflect light by total internal reflection — essentially a perfect built-in mirror — so they don’t need a mirror coating at all. That’s one reason a good porro can look surprisingly bright for its price.
ED Glass vs Coatings (Don’t Confuse Them)
Spec sheets love to list “ED glass” right next to the coatings, so people assume it’s another coating. It isn’t.
What ED glass actually is
ED stands for extra-low dispersion. It’s a special type of glass (not a layer) that bends different colors of light more evenly. Ordinary glass splits colors slightly, creating faint purple or green halos around bright edges — called chromatic aberration or color fringing. ED glass reduces that fringing for sharper, truer color.
Coatings + ED glass work together
Coatings control reflection and brightness; ED glass controls color accuracy. They solve different problems, and the best binoculars use both. Don’t pick one over the other — on a quality model, you get both.
💡 Expert Tip
If you mostly watch in good light and on a budget, prioritize fully multi-coated first. ED glass is a wonderful bonus, but coatings affect the everyday brightness and contrast you’ll notice most.
Protective Outer Coatings
Beyond the optical coatings inside, the outer lens surfaces often get protective coatings. These don’t change brightness much, but they make life with your binoculars much easier.
- Hydrophobic coating — repels water so rain beads up and rolls off instead of smearing your view.
- Oleophobic coating — resists fingerprints and oils, so smudges wipe off easily.
- Scratch-resistant coating — a hard outer layer that shrugs off light abrasion from dust and cleaning.
Brands market these under names like “EXO Barrier,” “ScratchResistant,” or “Hydrophobic.” They’re genuinely useful in the field, especially in rain or dust. Just remember they protect the outer glass only — the optical coatings inside are sealed away.
🧪 Best Practice
Protective coatings reduce smudges, but they aren’t armor. Still use a soft brush to remove grit before wiping, and a proper lens cloth — see our guide on how to clean binocular lenses to keep every coating intact.
How Coatings Change What You See
Numbers are nice, but what do coatings actually do to the view? Three big things.
1. Brightness
More light transmission means a brighter image — the single biggest payoff. This matters most at dawn and dusk, in forests, and any time the light is low. A fully multi-coated binocular can look noticeably brighter than a “coated” one of the same size.
2. Contrast
Coatings kill stray internal reflections that would otherwise wash the image with a faint haze. Less haze means deeper blacks, richer colors, and that “pop” where a deer or bird seems to stand out from the background.
3. Color accuracy
Even, full-spectrum coatings (especially dielectric prism coatings) keep colors true to life. Cheaper coatings can leave a faint yellow, green, or blue cast. With good coatings, white looks white and greens look natural.
| What you notice | Cheap / “coated” | Fully multi-coated + dielectric |
|---|---|---|
| Brightness at dusk | Dim, hard to see detail | Bright, usable longer |
| Contrast | Flat, slightly hazy | Punchy, clear separation |
| Color | Possible color tint | Natural, true color |
| Glare into the sun | More washout | Better control |
How to Judge Coatings Before You Buy
You don’t need a lab. Here’s how to size up coatings using the spec sheet and your own eyes.
Read the exact words
- Look for “fully multi-coated” (not just “coated” or “multi-coated”).
- On roof-prism models, look for “phase-correction” and “dielectric” prism coatings.
- Treat ED glass as a welcome bonus for color.
- If a spec sheet is vague or hides the coating level, be suspicious.
The tilt test
Hold the binocular under a light and tilt the big objective lenses. Quality multi-coatings show a faint green or purple sheen, and the reflection looks dim. If you see bright, mirror-like white or strong red reflections, the coatings are likely cheap or missing. It’s a quick, surprisingly reliable gut check.
🔬 Did You Know?
You can compare two binoculars in seconds: point both at the same shadowy area (under a bush, into a tree line) and switch back and forth. The one with better coatings will look obviously brighter and clearer in the shade, even if both say “8×42” on the barrel.
Common Coating Myths
Let’s bust the misconceptions that trip up buyers.
Myth 1: “Bigger lenses always mean a brighter image.”
Lens size helps, but a smaller fully multi-coated binocular can out-shine a larger poorly coated one. Coatings often matter more than a few extra millimeters of objective.

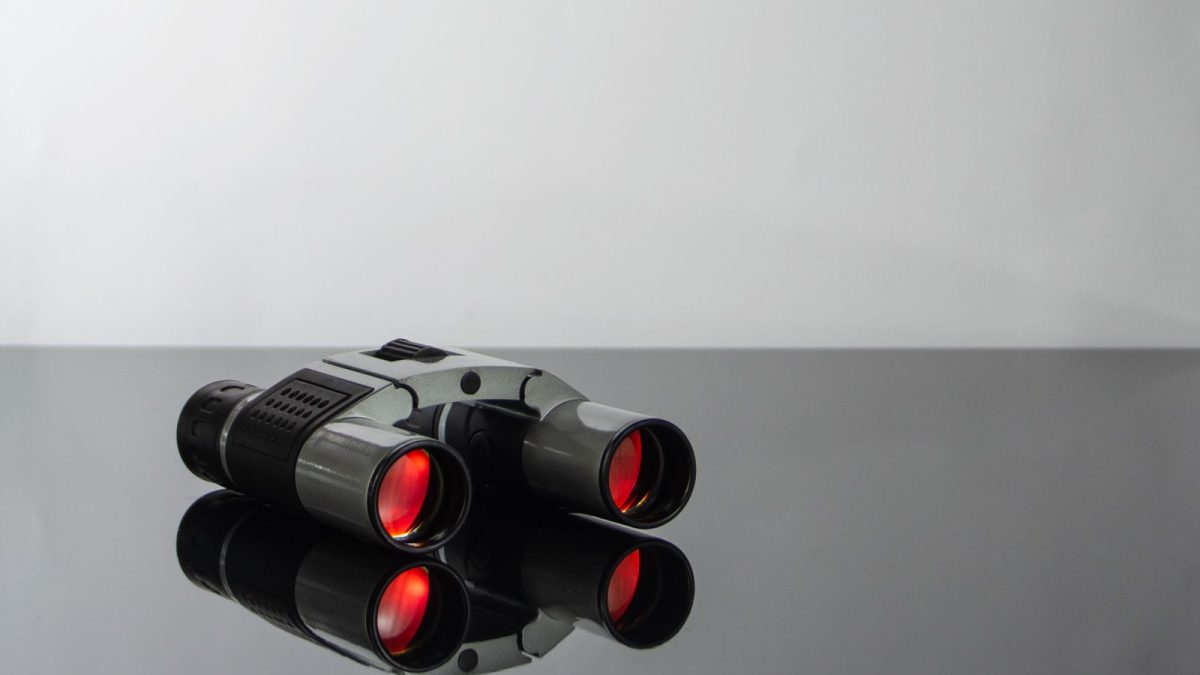

Myth 2: “Ruby-red coated lenses are premium.”
The opposite, usually. Bright red “ruby coatings” on cheap binoculars are often a gimmick that actually blocks some colors and can make images look off. Premium coatings look subtle green/purple, not flashy red.
Myth 3: “Coated and fully multi-coated are basically the same.”
No — that’s a 20–30 percentage-point difference in light transmission. It’s one of the biggest quality gaps in the whole spec sheet.
Myth 4: “Coatings wear off quickly.”
Interior coatings are sealed for life. Outer coatings only wear if you clean them roughly. Treat them gently and they’ll last for many years.
⚠️ Watch Out
Be wary of cheap binoculars advertising “ruby-coated” or “anti-glare red” lenses as a premium feature. They’re usually budget optics, and that red tint can hurt color accuracy rather than help it.
Caring for Your Coated Lenses
Good coatings are an investment — protect them with gentle habits.
- Blow or brush off grit first. Rubbing dust across glass is how coatings get scratched.
- Use a lens-safe fluid and a clean microfiber cloth — never your shirt or a paper towel.
- Wipe gently in small circles; don’t grind.
- Keep the caps on when not in use to shield the outer coatings from dust and scratches.
- Store them dry with a desiccant so moisture never sits on the glass.
For the full routine, see our step-by-step guide on how to clean binocular lenses properly.
📝 Good to Know
Birding and nature organizations like the Cornell Lab of Ornithology and the National Audubon Society consistently point beginners toward fully multi-coated optics, because the brightness and contrast gains make spotting and identifying wildlife noticeably easier.
Light Transmission: What the Percentage Really Means
You’ll often see binoculars rated by a “light transmission” percentage. It’s one of the clearest ways to compare coatings — but it helps to know what the number is telling you.
It’s the light that survives the trip
Light transmission is the share of light that enters the front lens and actually makes it to your eye, after passing through every lens and prism. An uncoated binocular might transmit just 50–60 percent. A fully multi-coated model with dielectric prism coatings can hit 90 percent or more. That gap is exactly the light that cheap coatings throw away.
Why small percentages matter at dusk
In bright daylight, your eyes have plenty of light, so the difference between 80 and 92 percent is hard to notice. But at dawn and dusk — prime wildlife hours — every percent counts. That extra light can be the difference between identifying an animal and watching a gray blur fade into the trees. This is why serious hunters and birders care so much about coatings.
How transmission relates to coatings
| Coating setup | Rough light transmission | Real-world feel |
|---|---|---|
| Uncoated | ~50–60% | Dim, hazy, low contrast |
| Fully coated (single layer) | ~80% | Usable, but flat in low light |
| Fully multi-coated | ~90% | Bright and clear |
| FMC + dielectric + phase | ~90–92%+ | Brightest, most color-true |
One caution: not every brand measures transmission the same way, and some quote a “peak” figure rather than an average across all colors. Treat the percentage as a useful guide, then confirm with the coating wording and the tilt test.
Matching Coatings to How You’ll Use Them
You don’t always need the absolute top coatings. The right level depends on when and where you’ll be looking. Here’s how to match coatings to your real-world use.
Low-light hunting and dawn/dusk birding
This is where coatings pay off most. Prioritize fully multi-coated lenses and, on roof models, dielectric prism coatings. The extra brightness directly extends how long you can see clearly in the gray light around sunrise and sunset.
General daytime use and hiking
If you mostly glass in good light, fully multi-coated is still ideal, but you’ll notice the difference less. A solid fully multi-coated model without top-tier dielectric coatings will serve you well and save money.
Marine and rainy conditions
Here, the protective outer coatings matter as much as the optical ones. Hydrophobic coatings that shed water and salt spray keep your view usable when the weather turns. Pair them with a sealed, waterproof body.
Astronomy and stargazing
Faint starlight needs every photon, so fully multi-coated optics genuinely help. Many astronomy binoculars also rely on big objective lenses and quality coatings together to deliver a bright night-sky view.
💡 Expert Tip
Set your budget around your darkest regular use. If you’ll glass at first and last light, spend up for better coatings. If you’re a fair-weather, midday user, a mid-tier fully multi-coated pair is plenty — put the savings toward a comfier harness or a tripod.
Frequently Asked Questions
What are binocular lens coatings?
Ultra-thin layers on the glass that reduce reflections, so more light reaches your eye. The result is a brighter, sharper, higher-contrast image with truer color.
What does fully multi-coated mean?
Every air-to-glass surface has multiple anti-reflection layers — the highest of the four coating levels, with light transmission usually above 90 percent.
What’s the difference between the four coating levels?
Coated (one surface, single layer), fully coated (all surfaces, single layer), multi-coated (one surface, multiple layers), and fully multi-coated (all surfaces, multiple layers). Brightness rises with each step.
What is phase-correction coating?
A coating on roof prisms that keeps light waves in sync for sharper, higher-contrast images. Porro prisms don’t need it.
What is a dielectric coating?
A premium multi-layer mirror coating on roof prisms that reflects 99%+ of light — brighter and more color-true than aluminum or silver coatings.
Is ED glass a coating?
No. ED (extra-low dispersion) glass is a special glass that reduces color fringing. It works alongside coatings but is a separate feature.
Are expensive coatings worth it?
Going from cheap to fully multi-coated with phase correction is a clear, visible upgrade. The jump to top dielectric coatings is subtler and matters most in low light.
How can I tell if coatings are good?
Read for “fully multi-coated,” plus phase-correction and dielectric on roof models. Then tilt the lenses to light: subtle green/purple sheen is good; bright white or red reflections are not.
Do coatings wear off?
Interior coatings last for life. Outer coatings only wear with rough cleaning, so treat them gently.
What does “fully multi-coated” do for low light?
It maximizes light transmission, so the image stays usable longer at dawn and dusk and looks brighter in shade and forest.
Summary & Key Takeaways
Coatings are the quiet hero of binocular performance. They don’t show up in the headline “8×42,” but they decide whether that view is bright and crisp or dim and flat. Now you can read any spec sheet and know exactly what you’re getting.
🎯 Key Takeaways
- Bare glass wastes light — coatings recover it (up to ~95% transmission).
- “Fully multi-coated” is the target — the word “fully” matters.
- Roof prisms need phase-correction for sharpness.
- Dielectric prism coatings (99%+) beat aluminum and silver.
- ED glass is separate — it fixes color fringing, not brightness.
- The tilt test (subtle green/purple sheen) reveals quality fast.
✅ Coating Checklist (When Buying)
Read the Spec Sheet Like a Pro
- “Fully multi-coated” — confirm the full phrase.
- “Phase-correction” — on any roof-prism model.
- “Dielectric” prism coating — for top brightness.
- “ED” / extra-low dispersion glass — bonus for color.
- Tilt test — subtle green/purple, dim reflections.
- Avoid vague “multi-coated optics” and red “ruby” lenses.
Common Mistakes Recap
- Reading “multi-coated” as if it meant “fully multi-coated.”
- Thinking ED glass and coatings are the same thing.
- Falling for flashy ruby-red “coatings” on budget optics.
- Ignoring phase-correction on a roof-prism purchase.
- Scrubbing the outer coatings with a shirt or paper towel.
Final Thoughts
Coatings are where a lot of a binocular’s real quality lives. Two pairs can share the same magnification and lens size, yet deliver wildly different views — and coatings are usually why. Now that you can decode “fully multi-coated,” “phase-corrected,” and “dielectric,” you’ll never be fooled by a vague spec sheet again.
Next time you pick up a pair, tilt the lenses to the light, read the exact wording, and trust your eyes in the shade. The brighter, crisper view will tell you everything you need to know.
Keep learning: read what the numbers on binoculars mean, roof prism vs porro prism, and how to clean binocular lenses.
Written by Cole Whitaker, Backcountry Hunting Optics Editor. Educational guide; product suggestion contains an affiliate link (#ad). Last updated June 26, 2026.
